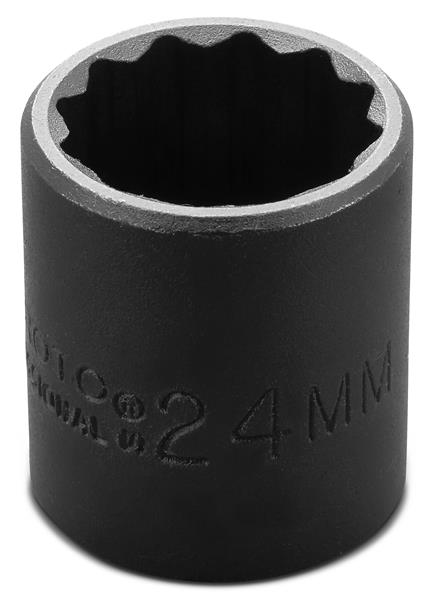

1/2 Inch Drive Thin Wall Impact Socket 24 mm - 12 Point - Proto®

  • Item Code: J7424MT
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Socket size stamped on tool for easy identification.
    • Side locking hole.

Tech Specs

Back To Top
Drive End Outside Diameter [in] 1-5/16
UPC Code 662679342814
Country of Origin United States
Item Weight [lbs] 0.320
Drive Size [in] 1/2
Item Length [in] 1.500
Point Size 12
Specification_ASME ASME B107.110-2012
Box Weight [lbs] 1.990
Length [in] 1-1/2
Bolt Clearance Depth [in] 21/32
Box Quantity 6
Box Height [in] 1.370
Brand Proto
Item Height [in] 1.300
Item Width [in] 1.300
Box Width [in] 3.500
Finish Black Oxide
Overall Length [in] 1-1/2
Size [mm] 24
Box Length [in] 7.500
Nut Depth [in] 27/32
Nut End Outside Diameter [in] 1-13/32
Specification_AS AS954E S3.8.1
Harmonization Code 8204200000
Item Quantity 1
Length Type Standard
