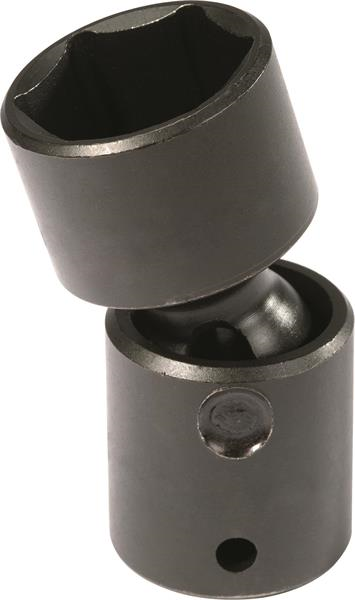

1/2 Inch Drive Universal Impact Socket 15/16 Inch - 6 Point - Proto®

  • Item Code: J74282P
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Ball and spring design which allows for a 30° working angle.
    • Smooth 360° rotation.
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679007409
Finish Black Oxide
Box Height [in] 1.500
Box Quantity 6
Drive End Outside Diameter [in] 1-3/8
Size [in] 15/16
Box Length [in] 9.300
Item Height [in] 1.400
Item Weight [lbs] 0.730
Nut End Outside Diameter [in] 1-5/16
Country of Origin United States
Drive Size [in] 1/2
Item Quantity 1
Nut Depth [in] 1/2
Overall Length [in] 2-27/32
Brand Proto
Point Size 6
Bolt Clearance Depth [in] 3/4
Box Weight [lbs] 4.350
Box Width [in] 3.500
Harmonization Code 8204200000
Item Length [in] 2.900
Item Width [in] 1.400
Length Type Standard
