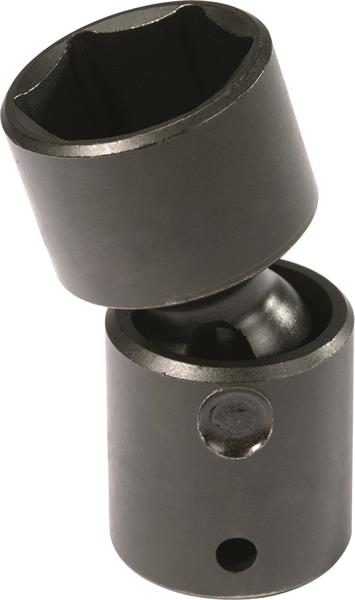

1/2 Inch Drive Universal Impact Socket 1 Inch - 6 Point - Proto®

  • Item Code: J74283P
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Ball and spring design which allows for a 30° working angle.
    • Smooth 360° rotation.
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679007416
Item Length [in] 2.900
Point Size 6
Drive End Outside Diameter [in] 1-3/8
Size [in] 1
Box Height [in] 1.500
Box Quantity 6
Box Weight [lbs] 4.410
Finish Black Oxide
Item Weight [lbs] 0.720
Item Width [in] 1.400
Nut End Outside Diameter [in] 1-11/32
Box Width [in] 3.500
Harmonization Code 8204200000
Length Type Standard
Country of Origin United States
Item Quantity 1
Nut Depth [in] 1/2
Overall Length [in] 2-27/32
Bolt Clearance Depth [in] 3/4
Box Length [in] 9.300
Brand Proto
Drive Size [in] 1/2
Item Height [in] 1.400
