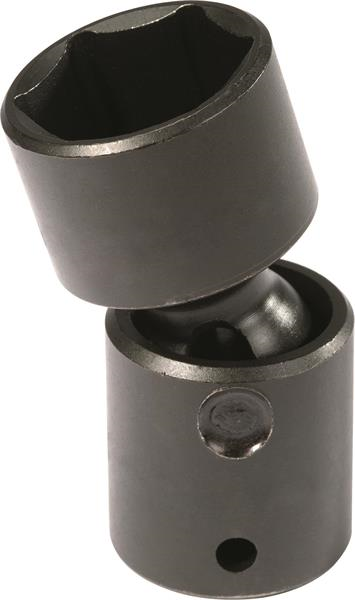

1/2 Inch Drive Universal Impact Socket 1-1/4 Inch - 6 Point - Proto®

  • Item Code: J74287P
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Ball and spring design which allows for a 30° working angle.
    • Smooth 360° rotation.
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679007454
Box Quantity 6
Brand Proto
Size [in] 1-1/4
Box Height [in] 1.800
Drive Size [in] 1/2
Item Length [in] 3.200
Box Width [in] 3.600
Country of Origin United States
Box Weight [lbs] 5.260
Item Height [in] 1.600
Item Width [in] 1.600
Point Size 6
Drive End Outside Diameter [in] 1-3/8
Harmonization Code 8204200000
Item Quantity 1
Length Type Standard
Overall Length [in] 3-3/16
Bolt Clearance Depth [in] 1-1/32
Box Length [in] 10.700
Item Weight [lbs] 0.880
Nut Depth [in] 3/4
Finish Black Oxide
Nut End Outside Diameter [in] 1-5/8
