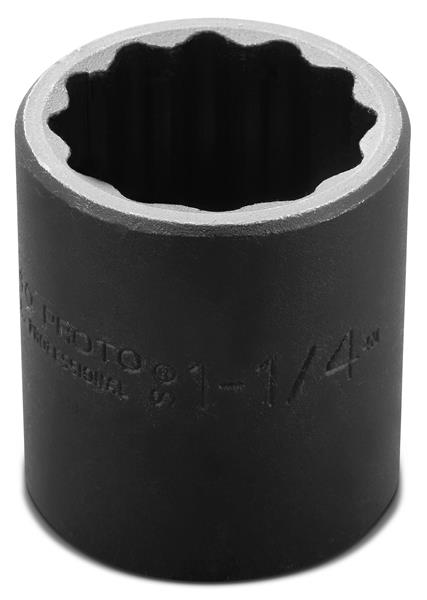

1/2 Inch Drive Impact Socket 1-1/4 Inch - 12 Point - Proto®

  • Item Code: J7440
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Socket size stamped on tool for easy identification.
    • Side locking hole.

Tech Specs

Back To Top
Item Height [in] 1.700
UPC Code 662679341770
Brand Proto
Item Width [in] 1.700
Length Type Standard
Box Height [in] 2.500
Box Width [in] 3.300
Drive Size [in] 1/2
Bolt Clearance Depth [in] 1
Harmonization Code 8204200000
Item Weight [lbs] 0.770
Size [in] 1-1/4
Box Weight [lbs] 4.680
Item Quantity 1
Box Quantity 6
Finish Black Oxide
Length [in] 2
Specification_AS AS954E S3.8.1
Country of Origin United States
Item Length [in] 2.000
Nut End Outside Diameter [in] 1-3/4
Point Size 12
Specification_ASME ASME B107.110-2012
Drive End Outside Diameter [in] 1-3/4
Nut Depth [in] 3/4
Box Length [in] 11.800
Overall Length [in] 2
