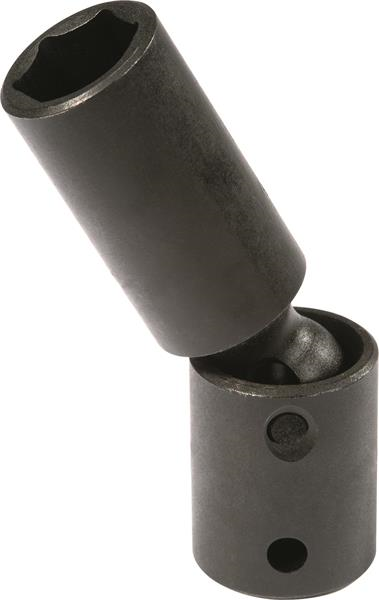

1/2 Inch Drive Universal Impact Socket 14 mm - 6 Point - Proto®

  • Item Code: J74414MP
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Ball and spring design which allows for a 30° working angle.
    • Smooth 360° rotation.
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679006457
Box Height [in] 1.800
Box Quantity 6
Item Height [in] 1.000
Country of Origin United States
Point Size 6
Box Weight [lbs] 2.160
Item Length [in] 2.600
Item Quantity 1
Length Type Standard
Nut Depth [in] 1/2
Box Length [in] 7.700
Item Weight [lbs] 0.360
Drive End Outside Diameter [in] 1-1/16
Size [mm] 14
Bolt Clearance Depth [in] 3/4
Box Width [in] 2.600
Drive Size [in] 1/2
Finish Black Oxide
Overall Length [in] 2-5/8
Item Width [in] 1.000
Brand Proto
Harmonization Code 8204200000
