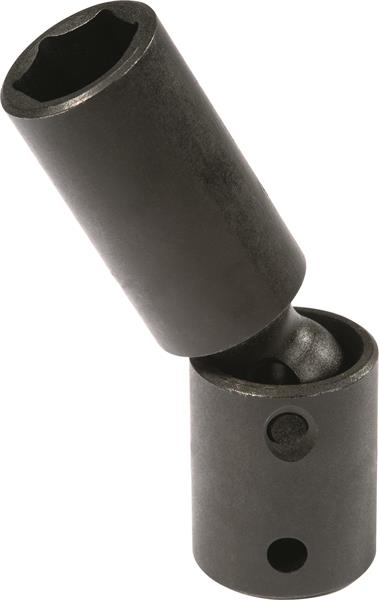

1/2 Inch Drive Universal Impact Socket 18 mm - 6 Point - Proto®

  • Item Code: J74418MP
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Ball and spring design which allows for a 30° working angle.
    • Smooth 360° rotation.
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679006495
Drive Size [in] 1/2
Item Length [in] 2.700
Item Width [in] 1.300
Size [mm] 18
Box Quantity 6
Brand Proto
Box Width [in] 3.600
Finish Black Oxide
Item Weight [lbs] 0.320
Overall Length [in] 2-5/8
Box Weight [lbs] 3.400
Country of Origin United States
Item Quantity 1
Nut Depth [in] 1/2
Item Height [in] 1.300
Bolt Clearance Depth [in] 3/4
Box Height [in] 1.300
Box Length [in] 7.700
Drive End Outside Diameter [in] 1-1/4
Harmonization Code 8204200000
Length Type Standard
Point Size 6
