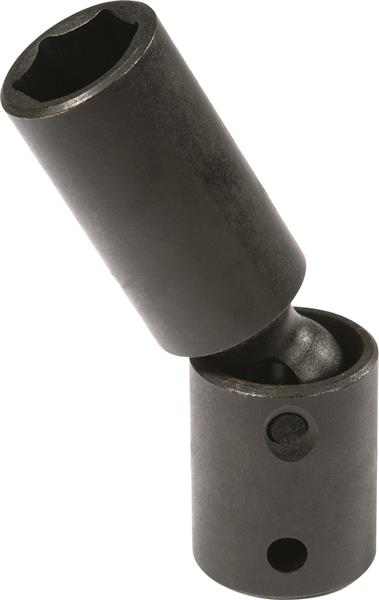

1/2 Inch Drive Universal Impact Socket 22 mm - 6 Point - Proto®

  • Item Code: J74422MP
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Ball and spring design which allows for a 30° working angle.
    • Smooth 360° rotation.
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679006525
Box Quantity 6
Drive End Outside Diameter [in] 1-1/4
Item Length [in] 2.600
Bolt Clearance Depth [in] 3/4
Drive Size [in] 1/2
Brand Proto
Box Height [in] 1.500
Country of Origin United States
Box Length [in] 9.300
Overall Length [in] 2-5/8
Point Size 6
Box Width [in] 3.500
Finish Black Oxide
Item Weight [lbs] 0.560
Item Height [in] 1.300
Item Width [in] 1.300
Box Weight [lbs] 3.460
Harmonization Code 8204200000
Item Quantity 1
Length Type Standard
Nut Depth [in] 1/2
Size [mm] 22
