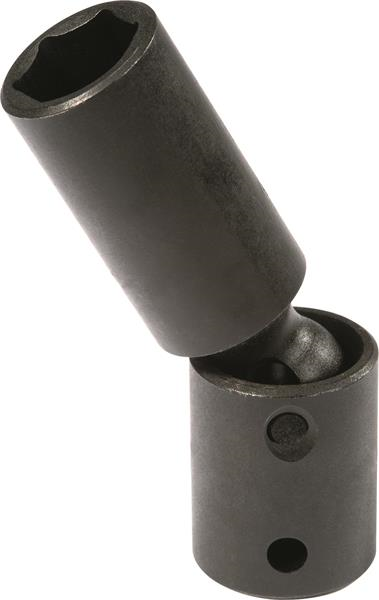

1/2 Inch Drive Universal Impact Socket 24 mm - 6 Point - Proto®

  • Item Code: J74424MP
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Ball and spring design which allows for a 30° working angle.
    • Smooth 360° rotation.
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Item Weight [lbs] 0.620
Overall Length [in] 2-5/8
UPC Code 662679006532
Item Quantity 1
Nut Depth [in] 1/2
Brand Proto
Drive End Outside Diameter [in] 1-1/4
Item Length [in] 2.700
Bolt Clearance Depth [in] 3/4
Box Width [in] 3.500
Drive Size [in] 1/2
Finish Black Oxide
Harmonization Code 8204200000
Length Type Standard
Point Size 6
Size [mm] 24
Item Width [in] 1.400
Box Weight [lbs] 3.690
Box Length [in] 9.300
Box Quantity 6
Box Height [in] 1.500
Country of Origin United States
Item Height [in] 1.400
