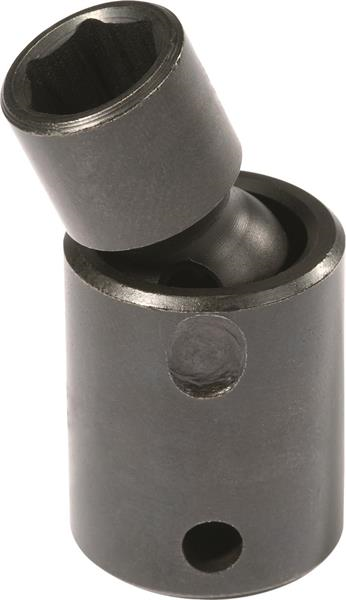

3/8 Inch Drive Universal Impact Socket 14 mm - 6 Point - Proto®

  • Item Code: J77414MP
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Ball and spring design which allows for a 30° working angle.
    • Smooth 360° rotation.
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679007553
Country of Origin United States
Drive Size [in] 3/8
Item Weight [lbs] 0.250
Nut Depth [in] 7/16
Overall Length [in] 2-1/16
Box Length [in] 7.700
Harmonization Code 8204200000
Item Quantity 1
Length Type Standard
Bolt Clearance Depth [in] 7/16
Box Height [in] 1.800
Box Weight [lbs] 1.500
Point Size 6
Item Width [in] 1.000
Box Width [in] 2.600
Drive End Outside Diameter [in] 15/16
Box Quantity 6
Brand Proto
Finish Black Oxide
Item Height [in] 1.000
Item Length [in] 2.000
Size [mm] 14
