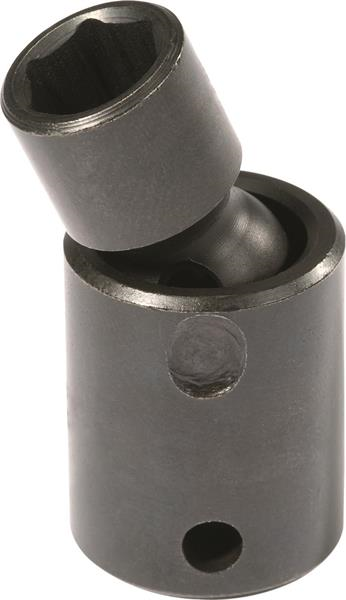

3/8 Inch Drive Universal Impact Socket 17 mm - 6 Point - Proto®

  • Item Code: J77417MP
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Ball and spring design which allows for a 30° working angle.
    • Smooth 360° rotation.
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Size [mm] 17
UPC Code 662679007584
Finish Black Oxide
Item Quantity 1
Overall Length [in] 2-1/8
Bolt Clearance Depth [in] 7/16
Box Weight [lbs] 1.690
Drive End Outside Diameter [in] 15/16
Drive Size [in] 3/8
Item Length [in] 2.100
Point Size 6
Harmonization Code 8204200000
Length Type Standard
Box Height [in] 1.800
Box Quantity 6
Country of Origin United States
Nut Depth [in] 7/16
Box Width [in] 2.600
Brand Proto
Item Width [in] 1.000
Box Length [in] 7.700
Item Height [in] 1.000
Item Weight [lbs] 0.280
