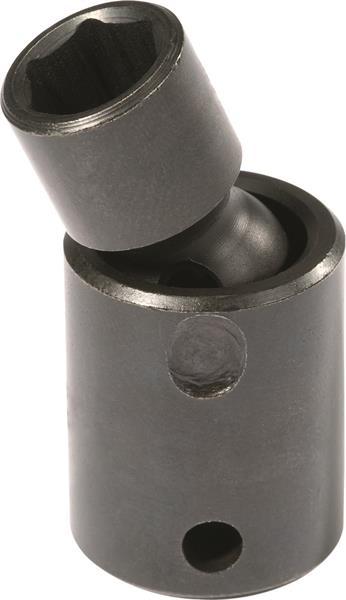

3/8 Inch Drive Universal Impact Socket 19 mm - 6 Point - Proto®

  • Item Code: J77419MP
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Ball and spring design which allows for a 30° working angle.
    • Smooth 360° rotation.
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679007607
Finish Black Oxide
Item Quantity 1
Overall Length [in] 2-1/8
Bolt Clearance Depth [in] 7/16
Box Quantity 6
Brand Proto
Harmonization Code 8204200000
Item Weight [lbs] 0.290
Length Type Standard
Point Size 6
Box Height [in] 1.800
Item Height [in] 1.100
Item Width [in] 1.100
Item Length [in] 2.100
Box Length [in] 7.700
Box Width [in] 2.600
Size [mm] 19
Box Weight [lbs] 1.720
Country of Origin United States
Drive End Outside Diameter [in] 15/16
Drive Size [in] 3/8
Nut Depth [in] 7/16
