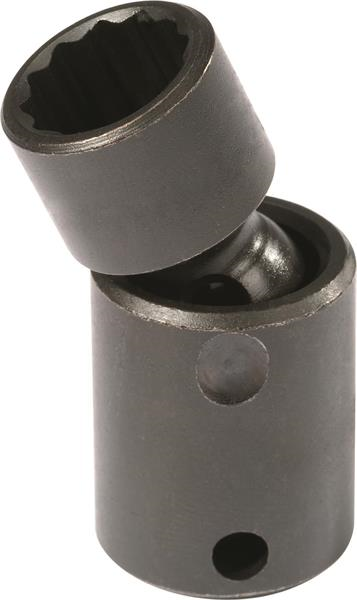

3/8 Inch Drive Universal Impact Socket 14 mm - 12 Point - Proto®

  • Item Code: J77514MP
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Ball and spring design which allows for a 30° working angle.
    • Smooth 360° rotation.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679006389
Box Width [in] 2.600
Finish Black Oxide
Harmonization Code 8204200000
Item Length [in] 2.000
Point Size 12
Item Width [in] 1.000
Size [mm] 14
Item Weight [lbs] 0.250
Overall Length [in] 2-1/16
Box Weight [lbs] 1.490
Drive End Outside Diameter [in] 15/16
Length Type Standard
Bolt Clearance Depth [in] 7/16
Box Quantity 6
Brand Proto
Nut Depth [in] 7/16
Country of Origin United States
Drive Size [in] 3/8
Item Quantity 1
Box Height [in] 1.800
Box Length [in] 7.700
Item Height [in] 1.000
