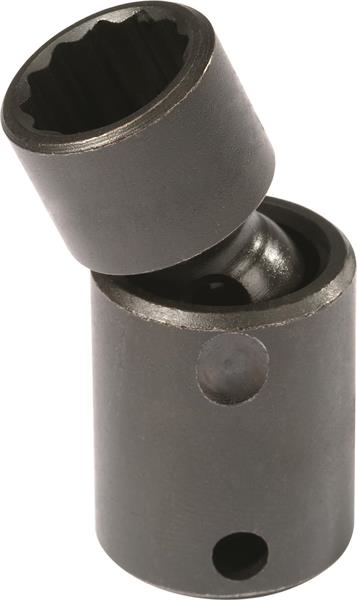

3/8 Inch Drive Universal Impact Socket 15 mm - 12 Point - Proto®

  • Item Code: J77515MP
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Ball and spring design which allows for a 30° working angle.
    • Smooth 360° rotation.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Size [mm] 15
UPC Code 662679006396
Box Height [in] 1.500
Country of Origin United States
Nut Depth [in] 7/16
Brand Proto
Item Width [in] 1.000
Point Size 12
Box Width [in] 2.100
Box Quantity 6
Item Height [in] 1.000
Drive Size [in] 3/8
Item Length [in] 2.100
Box Length [in] 6.900
Finish Black Oxide
Item Weight [lbs] 0.250
Overall Length [in] 2-1/16
Bolt Clearance Depth [in] 7/16
Box Weight [lbs] 1.490
Drive End Outside Diameter [in] 15/16
Length Type Standard
Harmonization Code 8204200000
Item Quantity 1
