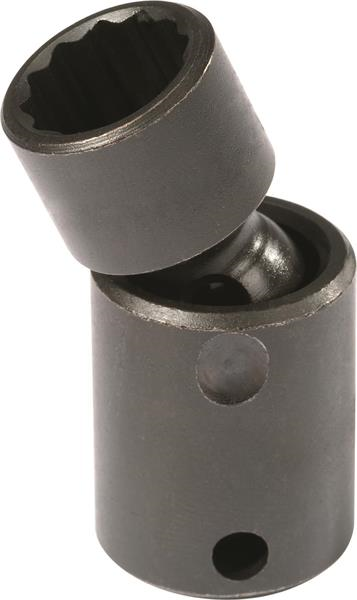

3/8 Inch Drive Universal Impact Socket 16 mm - 12 Point - Proto®

  • Item Code: J77516MP
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Ball and spring design which allows for a 30° working angle.
    • Smooth 360° rotation.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679006402
Finish Black Oxide
Harmonization Code 8204200000
Length Type Standard
Size [mm] 16
Box Height [in] 1.800
Box Width [in] 2.600
Point Size 12
Box Weight [lbs] 1.570
Item Quantity 1
Item Width [in] 1.000
Bolt Clearance Depth [in] 7/16
Drive End Outside Diameter [in] 15/16
Box Length [in] 7.700
Item Height [in] 1.000
Drive Size [in] 3/8
Item Length [in] 2.100
Item Weight [lbs] 0.260
Box Quantity 6
Brand Proto
Country of Origin United States
Nut Depth [in] 7/16
Overall Length [in] 2-3/32
