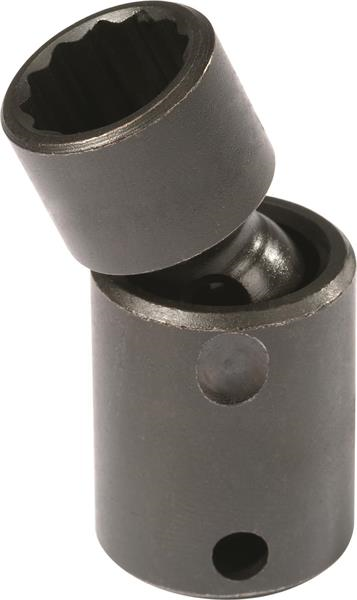

3/8 Inch Drive Universal Impact Socket 17 mm - 12 Point - Proto®

  • Item Code: J77517MP
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Ball and spring design which allows for a 30° working angle.
    • Smooth 360° rotation.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679006419
Box Weight [lbs] 1.690
Country of Origin United States
Drive Size [in] 3/8
Item Length [in] 2.100
Nut Depth [in] 7/16
Box Height [in] 1.800
Box Length [in] 7.700
Box Width [in] 2.600
Point Size 12
Item Height [in] 1.000
Item Weight [lbs] 0.280
Harmonization Code 8204200000
Item Quantity 1
Length Type Standard
Overall Length [in] 2-1/8
Bolt Clearance Depth [in] 7/16
Box Quantity 6
Brand Proto
Drive End Outside Diameter [in] 15/16
Finish Black Oxide
Item Width [in] 1.000
Size [mm] 17
