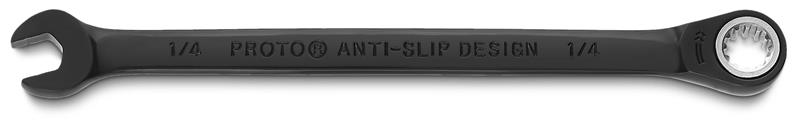

Black Chrome Combination Non-Reversible Ratcheting Wrench 1/4 Inch - Spline - Proto®
- Item Code: JSCR08
- Brand: Proto
- Unit Size: 1
Description
Fractional spline wrenches can be used on fractional 4, 6, 12 point, spline and Torx® fasteners.
Box end is countersunk for easy application to the fastener.
Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized.
Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to Foreign Object Damage (FOD).
The high contact surface area which is away from fastener points enables turning of highly rounded fasteners.
Anti-Slip Design (ASD) open end.
Black chrome finish is corrosion resistant and visually distinctive.
Features
Back To Top- Fractional spline wrenches can be used on fractional 4, 6, 12 point, spline and Torx® fasteners.
- Box end is countersunk for easy application to the fastener.
- Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized.
- Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to Foreign Object Damage (FOD).
- The high contact surface area which is away from fastener points enables turning of highly rounded fasteners.
- Anti-Slip Design (ASD) open end.
- Black chrome finish is corrosion resistant and visually distinctive.
Tech Specs
Back To Top| Carton Weight [lbs] | 7.200 |
|---|---|
| UPC Code | 662679972226 |
| Brand | Proto |
| Carton Length [in] | 7.800 |
| Box Weight [lbs] | 0.640 |
| Head Thickness 1 [in] | 1/8 |
| Item Length [in] | 5.000 |
| Item Width [in] | 0.600 |
| Overall Length [in] | 5 |
| Box Length [in] | 6.200 |
| Outside Head Width 1 [in] | 9/16 |
| Point Size | Spline |
| Carton Height [in] | 8.300 |
| Carton Quantity | 100 |
| Box Width [in] | 2.000 |
| Head Thickness 2 [in] | 1/8 |
| Item Weight [lbs] | 0.060 |
| Outside Head Width 2 [in] | 35/64 |
| Box Quantity | 10 |
| Country of Origin | Taiwan |
| Harmonization Code | 8204110030 |
| Item Quantity | 1 |
| Box Height [in] | 2.000 |
| Carton Width [in] | 5.600 |
| Finish | Black Chrome |
| Item Height [in] | 0.200 |
| Length [in] | 5 |
| Size [in] | 1/4 |
