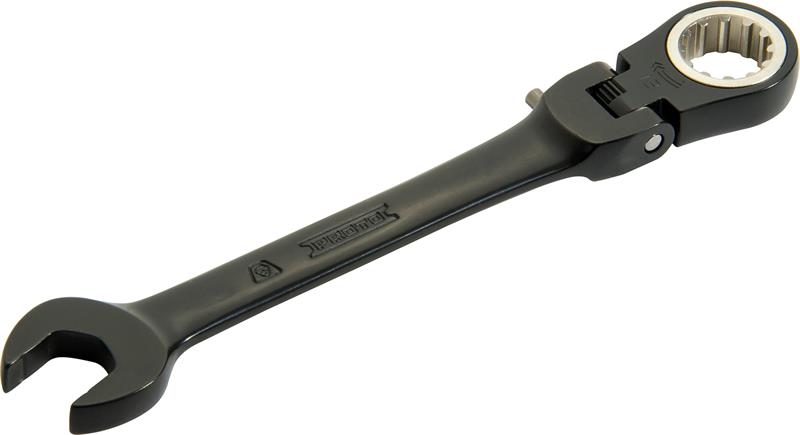

Black Chrome Combination Locking Flex-Head Ratcheting Wrench 3/8 Inch - Spline - Proto®
- Item Code: JSCV12F
- Brand: Proto
- Unit Size: 1
Description
15° angled offset helps keep shank clear of obstructions.
Chrome-vanadium box ends and switch levers provide high strength and durability.
Box end is countersunk for easy application to the fastener.
Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized.
Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to Foreign Object Damage (FOD).
The high contact surface area which is away from fastener points enables turning of highly rounded fastener.
Anti-Slip Design (ASD) open end.
Black chrome finish is corrosion resistant and visually distinctive.
72 tooth ratcheting mechanism rotates fast with only 5 degrees of swing.
Spline wrenches can be used on 4, 6, 12 point, spline and Torx® fasteners.
Features
Back To Top- 15° angled offset helps keep shank clear of obstructions.
- Chrome-vanadium box ends and switch levers provide high strength and durability.
- Box end is countersunk for easy application to the fastener.
- Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized.
- Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to Foreign Object Damage (FOD).
- The high contact surface area which is away from fastener points enables turning of highly rounded fastener.
- Anti-Slip Design (ASD) open end.
- Black chrome finish is corrosion resistant and visually distinctive.
- 72 tooth ratcheting mechanism rotates fast with only 5 degrees of swing.
- Spline wrenches can be used on 4, 6, 12 point, spline and Torx® fasteners.
Tech Specs
Back To Top| Box Weight [lbs] | 1.270 |
|---|---|
| Carton Weight [lbs] | 13.300 |
| UPC Code | 662679113896 |
| Box Height [in] | 2.000 |
| Carton Height [in] | 5.400 |
| Overall Length [in] | 5-3/8 |
| Box Length [in] | 6.900 |
| Item Height [in] | 0.300 |
| Item Weight [lbs] | 0.130 |
| Brand | Proto |
| Carton Length [in] | 11.200 |
| Item Width [in] | 0.800 |
| Box Quantity | 10 |
| Country of Origin | Taiwan |
| Point Size | Spline |
| Finish | Black Chrome |
| Carton Quantity | 100 |
| Item Length [in] | 5.400 |
| Outside Head Width 2 [in] | 7/8 |
| Box Width [in] | 2.000 |
| Carton Width [in] | 7.800 |
| Harmonization Code | 8204110030 |
| Head Thickness 1 [in] | 13/64 |
| Head Thickness 2 [in] | 9/32 |
| Item Quantity | 1 |
| Outside Head Width 1 [in] | 13/16 |
| Size [in] | 3/8 |
