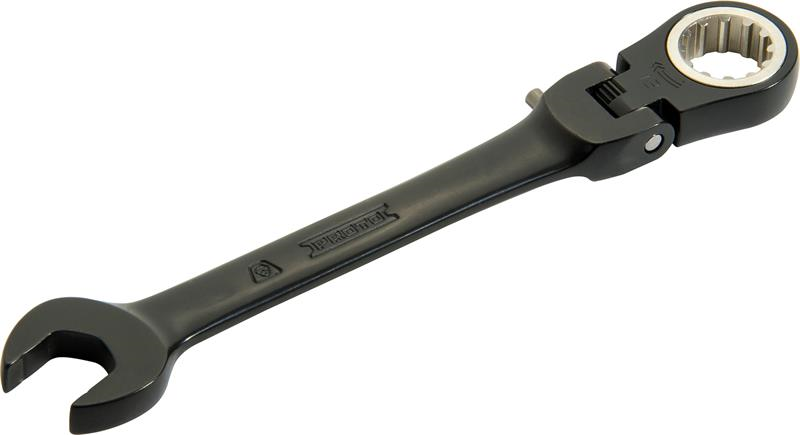

Black Chrome Combination Locking Flex-Head Ratcheting Wrench 11/16 Inch - Spline - Proto®
- Item Code: JSCV22F
- Brand: Proto
- Unit Size: 1
Description
15° angled offset helps keep shank clear of obstructions.
Chrome-vanadium box ends and switch levers provide high strength and durability.
Box end is countersunk for easy application to the fastener.
Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized.
Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to Foreign Object Damage (FOD).
The high contact surface area which is away from fastener points enables turning of highly rounded fastener.
Anti-Slip Design (ASD) open end.
Black chrome finish is corrosion resistant and visually distinctive.
72 tooth ratcheting mechanism rotates fast with only 5 degrees of swing.
Spline wrenches can be used on 4, 6, 12 point, spline and Torx® fasteners.
Features
Back To Top- 15° angled offset helps keep shank clear of obstructions.
- Chrome-vanadium box ends and switch levers provide high strength and durability.
- Box end is countersunk for easy application to the fastener.
- Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized.
- Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to Foreign Object Damage (FOD).
- The high contact surface area which is away from fastener points enables turning of highly rounded fastener.
- Anti-Slip Design (ASD) open end.
- Black chrome finish is corrosion resistant and visually distinctive.
- 72 tooth ratcheting mechanism rotates fast with only 5 degrees of swing.
- Spline wrenches can be used on 4, 6, 12 point, spline and Torx® fasteners.
Tech Specs
Back To Top| Carton Weight [lbs] | 38.950 |
|---|---|
| Head Thickness 2 [in] | 1-7/32 |
| UPC Code | 662679113940 |
| Carton Height [in] | 7.100 |
| Item Height [in] | 0.400 |
| Item Width [in] | 1.200 |
| Box Length [in] | 9.200 |
| Brand | Proto |
| Outside Head Width 2 [in] | 13/32 |
| Carton Quantity | 100 |
| Country of Origin | Taiwan |
| Size [in] | 11/16 |
| Box Height [in] | 2.500 |
| Carton Length [in] | 13.900 |
| Harmonization Code | 8204110030 |
| Head Thickness 1 [in] | 19/64 |
| Item Length [in] | 7.500 |
| Item Quantity | 1 |
| Finish | Black Chrome |
| Point Size | Spline |
| Item Weight [lbs] | 0.380 |
| Outside Head Width 1 [in] | 1-25/64 |
| Overall Length [in] | 7-1/2 |
| Box Quantity | 10 |
| Box Weight [lbs] | 3.790 |
| Box Width [in] | 3.000 |
| Carton Width [in] | 10.200 |
