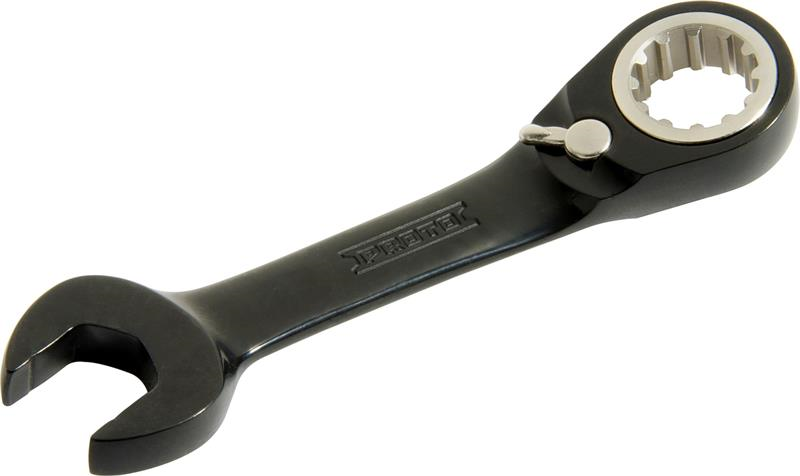

Black Chrome Combination Stubby Reversible Ratcheting Wrench 3/4 Inch - Spline - Proto®
- Item Code: JSCV24S
- Brand: Proto
- Unit Size: 1
Description
The chrome-vanadium switch lever allows for easy changes in turning direction which helps improve speed.
15° angled offset helps keep shank clear of obstructions.
Chrome-vanadium box ends and switch levers provide high strength and durability.
Box end is countersunk for easy application to the fastener.
Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized.
Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to Foreign Object Damage (FOD).
The high contact surface area which is away from fastener points enables turning of highly rounded fastener.
Anti-Slip Design (ASD) open end.
Black chrome finish is corrosion resistant and visually distinctive.
Compact size allows you to work in tight spots.
72 tooth ratcheting mechanism rotates fast with only 5 degrees of swing.
Spline wrenches can be used on 4, 6, 12 point, spline and Torx® fasteners.
Features
Back To Top- The chrome-vanadium switch lever allows for easy changes in turning direction which helps improve speed.
- 15° angled offset helps keep shank clear of obstructions.
- Chrome-vanadium box ends and switch levers provide high strength and durability.
- Box end is countersunk for easy application to the fastener.
- Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized.
- Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to Foreign Object Damage (FOD).
- The high contact surface area which is away from fastener points enables turning of highly rounded fastener.
- Anti-Slip Design (ASD) open end.
- Black chrome finish is corrosion resistant and visually distinctive.
- Compact size allows you to work in tight spots.
- 72 tooth ratcheting mechanism rotates fast with only 5 degrees of swing.
- Spline wrenches can be used on 4, 6, 12 point, spline and Torx® fasteners.
Tech Specs
Back To Top| Carton Weight [lbs] | 34.920 |
|---|---|
| Outside Head Width 2 [in] | 1-5/16 |
| UPC Code | 662679113742 |
| Head Thickness 2 [in] | 7/16 |
| Outside Head Width 1 [in] | 1-9/16 |
| Brand | Proto |
| Carton Width [in] | 7.700 |
| Head Thickness 1 [in] | 5/16 |
| Item Length [in] | 5.500 |
| Item Width [in] | 1.500 |
| Box Quantity | 10 |
| Carton Height [in] | 12.800 |
| Carton Length [in] | 11.900 |
| Item Weight [lbs] | 0.360 |
| Box Length [in] | 11.100 |
| Harmonization Code | 8204110030 |
| Item Quantity | 1 |
| Carton Quantity | 100 |
| Size [in] | 3/4 |
| Finish | Black Chrome |
| Point Size | Spline |
| Box Height [in] | 2.300 |
| Box Weight [lbs] | 3.450 |
| Country of Origin | Taiwan |
| Overall Length [in] | 5-1/2 |
| Box Width [in] | 3.400 |
| Item Height [in] | 0.500 |
