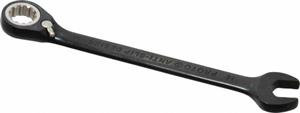

Black Chrome Combination Reversible Ratcheting Wrench 14 mm - Spline - Proto®
- Item Code: JSCVM14-PRO
- Brand: Proto
- Unit Size: 1
Description
Metric Spline wrenches can be used on metric 4, 6, 12 point, spline and Torx® fasteners.
The chrome-vanadium switch lever allows for easy changes in turning direction which helps improve speed.
15° angled offset box end helps keep shank clear of obstructions.
Chrome-vanadium box ends and switch levers provide high strength and durability.
Box end is countersunk for easy application to the fastener.
Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized.
Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to Foreign Object Damage (FOD).
The high contact surface area which is away from fastener points enables turning of highly rounded fasteners.
Anti-Slip Design (ASD) open end.
Black chrome finish is corrosion resistant and visually distinctive.
Features
Back To Top- Metric Spline wrenches can be used on metric 4, 6, 12 point, spline and Torx® fasteners.
- The chrome-vanadium switch lever allows for easy changes in turning direction which helps improve speed.
- 15° angled offset box end helps keep shank clear of obstructions.
- Chrome-vanadium box ends and switch levers provide high strength and durability.
- Box end is countersunk for easy application to the fastener.
- Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized.
- Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to Foreign Object Damage (FOD).
- The high contact surface area which is away from fastener points enables turning of highly rounded fasteners.
- Anti-Slip Design (ASD) open end.
- Black chrome finish is corrosion resistant and visually distinctive.
Tech Specs
Back To Top| Carton Length [in] | 9.300 |
|---|---|
| Carton Weight [lbs] | 26.200 |
| UPC Code | 662679972769 |
| Item Width [in] | 1.200 |
| Outside Head Width 1 [in] | 1-1/8 |
| Brand | Proto |
| Harmonization Code | 8204110030 |
| Item Length [in] | 7.500 |
| Item Quantity | 1 |
| Box Length [in] | 8.600 |
| Finish | Black Chrome |
| Item Weight [lbs] | 0.240 |
| Outside Head Width 2 [in] | 1-1/16 |
| Carton Quantity | 100 |
| Overall Length [in] | 7-1/2 |
| Box Width [in] | 3.500 |
| Carton Width [in] | 8.000 |
| Point Size | Spline |
| Box Height [in] | 2.400 |
| Head Thickness 1 [in] | 3/16 |
| Box Weight [lbs] | 3.500 |
| Item Height [in] | 0.300 |
| Length [in] | 7-1/2 |
| Box Quantity | 10 |
| Carton Height [in] | 13.100 |
| Country of Origin | Taiwan |
| Head Thickness 2 [in] | 3/16 |
| Size [mm] | 14 |
