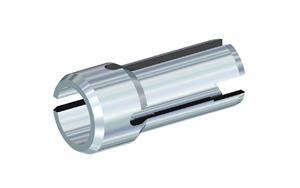

#10 & 3/16 in. Series DA-J Double Angle Solid Tap Collets
- Item Code: JTC10
- Brand: Widia-Erickson
- Unit Size: 1
Description
Collet Series J
Features
Back To Top- Provides positive retention for tapping applications
- Design of slots in back of collet acts as a drive for the tap square
- Can be used in all standard J-series double-angle collet chucks
- Industry-standard Erickson� double-angle collet system
Tech Specs
Back To Top| Tap Range (in.) | #10 & 3/16" |
|---|---|
| Collet Series | J |
| Collet Style | Double Angle |
| Coolant Thru | No |
| Overall Length (mm) | 30.16 mm |
| Brand | Widia-Erickson |
| Overall Length (in.) | 1.1875" |
| Tap Range (mm) | M4.5 & M5 |
