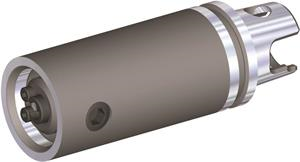

KM32, 1.969 Inch Long, Modular Tool Holding Extension
- Item Code: KM32TSS32050M
- Brand: WIDIA-Erickson
- Unit Size: 1
| Adapter Size Machine Side-EPP |
0320 |
| Adapter Style Machine Side-EPP |
KMT-01 Std KM |
| Adapter/Shank/Bore Diameter (Fractional) |
1.2598 |
| Body Diameter 1 Workpce Side (In) |
1.2598 |
| Body Diameter Machine Side (In) |
1.2598 |
| Body Diameter Machine Side (mm) |
32.000 |
| Flange Length (Metric) |
10.000 |
| Overall Length (Inch) |
2.7559 |
| Overall Length (Metric) |
70.000 |
| Shank Length (Metric) |
20.000 |
| System Size Machine Side |
KM32 |
| System SizeWorkpiece Side |
KM32 |
| Usable Length (Inch) |
1.9685 |
| Usable Length (Metric) |
50.000 |
| Units of Tool (Extract) |
MM - Metric |
| Body Diameter 1 Workpce Side (mm) |
32.000 |
| Gage Length 1 (Metric) |
50.000 |
| Actuation Screw ID Drive Size |
5 mm |
| Adapter Type Machine Side-EPP |
KMT - KM Adapter |
| Brand |
WIDIA-Erickson |
| Adapt/Shank/Bore Diameter WKPS (mm) |
32.000 |
| Adapter/Shank/Bore Diameter (mm) |
32.000 |
| Adapt/Shank/Bore Diameter WKPS (In) |
1.2598 |
| Adapter Size Workpiece Side |
0320 |
| Shank Length (Inch) |
0.7874 |
| Adapter Style Machine Side |
KM |
| Adapter Type Machine Side |
Taper Shank |
| Adapter/Shank/Bore Diameter (Inch) |
1.2598 |
| Gage Length 1 (Inch) |
1.9685 |
