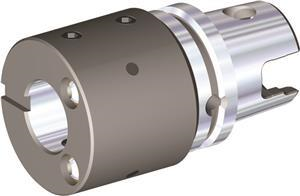

KM63XMZ 1-1/4 Inch Quick Change Boring Bar Adapter
- Item Code: KM63XMZBA125307Y
- Brand: WIDIA-Erickson
- Unit Size: 1
| Body Diameter 1 Workpce Side (In) |
2.7559 |
| Clamp Screw ID Drive Size |
5 mm |
| Flange Length (Metric) |
20.000 |
| Gage Length 1 (Inch) |
3.0709 |
| Gage Length 1 (Metric) |
78.000 |
| Overall Length (Inch) |
4.6457 |
| Overall Length (Metric) |
118.000 |
| Adapter Size Machine Side-EPP |
0630 |
| Adapter Size Workpiece Side |
1250 |
| Adapter Style Machine Side |
KM |
| Body Diameter 1 Workpce Side (mm) |
70.000 |
| Shank Length (Inch) |
1.5748 |
| System Size Machine Side |
KM63XMZ |
| Brand |
WIDIA-Erickson |
| Adapter Type Machine Side-EPP |
KMT - KM Adapter |
| Adapter/Shank/Bore Diameter (Fractional) |
2.4803 |
| Adapt/Shank/Bore Diameter WKPS (In) |
1.2500 |
| Adapter/Shank/Bore Diameter (Inch) |
2.4803 |
| Shank Length (Metric) |
40.000 |
| Adapter Style Machine Side-EPP |
KMT-03 Auto Tool Chg w/3 Hole |
| Adapter/Shank/Bore Diameter (mm) |
63.000 |
| Adapt/Shank/Bore Diameter WKPS (mm) |
31.750 |
| Adapter Type Machine Side |
Taper Shank |
| Units of Tool (Extract) |
IN - Inch |
| Adapt/Shank/Bore Diameter WKPS F |
1 1/4 |
