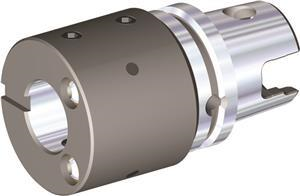

1-1/2 Inch Bore Diameter, 3.15 Inch Body Diameter x 4.134 Inch Body Length, KM63 Boring Bar Holder and Adapter
- Item Code: KM63XMZBA150413Y
- Brand: WIDIA-Erickson
- Unit Size: 1
| Adapt/Shank/Bore Diameter WKPS F |
1 1/2 |
| Body Diameter 1 Workpce Side (In) |
3.1496 |
| Body Diameter 1 Workpce Side (mm) |
80.000 |
| Clamp Screw ID Drive Size |
6 mm |
| Gage Length 1 (Inch) |
4.1339 |
| Gage Length 1 (Metric) |
105.000 |
| Overall Length (Inch) |
5.7087 |
| Overall Length (Metric) |
145.000 |
| Shank Length (Inch) |
1.5748 |
| System Size Machine Side |
KM63XMZ |
| Adapter Size Machine Side-EPP |
0630 |
| Adapter Style Machine Side |
KM |
| Adapter/Shank/Bore Diameter (Inch) |
2.4803 |
| Adapter/Shank/Bore Diameter (mm) |
63.000 |
| Adapter Style Machine Side-EPP |
KMT-03 Auto Tool Chg w/3 Hole |
| Adapter Type Machine Side |
Taper Shank |
| Flange Length (Metric) |
18.000 |
| Shank Length (Metric) |
40.000 |
| Adapt/Shank/Bore Diameter WKPS (mm) |
38.100 |
| Adapter Size Workpiece Side |
1500 |
| Adapter/Shank/Bore Diameter (Fractional) |
2.4803 |
| Brand |
WIDIA-Erickson |
| Units of Tool (Extract) |
IN - Inch |
| Adapt/Shank/Bore Diameter WKPS (In) |
1.5000 |
| Adapter Type Machine Side-EPP |
KMT - KM Adapter |
