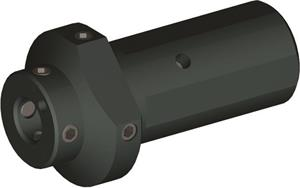

3/8 Inch Hole Diameter, KM63XMZ Outside Modular Connection, Boring Bar Reducing Adapter
- Item Code: KM63XMZBR150038Y
- Brand: WIDIA-Erickson
- Unit Size: 1
| Adapt/Shank/Bore Diameter WKPS (In) |
0.3750 |
| Adapter Size Machine Side-EPP |
1500 |
| Adapter/Shank/Bore Diameter (Fractional) |
1 1/2 |
| Adapter/Shank/Bore Diameter (mm) |
38.100 |
| Body Diameter Machine Side (In) |
2.2717 |
| Gage Length 1 (Inch) |
1.1811 |
| Overall Length (Inch) |
4.1339 |
| Shank Length (Inch) |
2.9528 |
| Shank Length (Metric) |
75.000 |
| Usable Length (Inch) |
0.4724 |
| Adapter Size Workpiece Side |
0375 |
| Units of Tool (Extract) |
IN - Inch |
| Body Diameter 1 Workpce Side (In) |
1.4173 |
| Adapt/Shank/Bore Diameter WKPS (mm) |
9.525 |
| Usable Length (Metric) |
12.000 |
| Adapter Style Machine Side-EPP |
ZYL-22 Boring Bar Shank |
| Adapter Type Machine Side |
Cylindrical |
| Body Diameter 1 Workpce Side (mm) |
36.000 |
| Adapter/Shank/Bore Diameter (Inch) |
1.5000 |
| Body Diameter Machine Side (mm) |
57.700 |
| Flange Length (Metric) |
30.000 |
| Gage Length 1 (Metric) |
30.000 |
| Overall Length (Metric) |
105.000 |
| Adapt/Shank/Bore Diameter WKPS F |
3/8 |
| Brand |
WIDIA-Erickson |
| Adapter Style Machine Side |
Boring Bar Shank |
| Adapter Type Machine Side-EPP |
ZYL - Cylindrical Adapter |
| Clamp Screw ID Drive Size |
3 mm |
