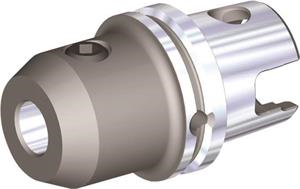

3/4 Inch Hole Diameter, 65mm Projection, KM63XMZ Modular Connection End Mill Holder
- Item Code: KM63XMZEM075256Y
- Brand: WIDIA-Erickson
- Unit Size: 1
| Clamp Screw ID Drive Size |
5/16 |
| Clamp Screw Thread Size |
5/8-11 |
| Gage Length 1 (Inch) |
2.5590 |
| Gage Length 1 (Metric) |
65.000 |
| Overall Length (Inch) |
4.1320 |
| Overall Length (Metric) |
104.950 |
| Shank Length (Metric) |
39.950 |
| Adapter Type Machine Side |
Taper Shank |
| Flange Length (Metric) |
18.000 |
| Adapt/Shank/Bore Diameter WKPS (In) |
0.7500 |
| Adapter Size Machine Side-EPP |
0630 |
| Adapter Type Machine Side-EPP |
KMT - KM Adapter |
| Body Diameter 1 Workpce Side (In) |
1.7500 |
| Adapter/Shank/Bore Diameter (Fractional) |
2.4803 |
| Brand |
WIDIA-Erickson |
| Units of Tool (Extract) |
IN - Inch |
| Shank Length (Inch) |
1.5728 |
| Adapt/Shank/Bore Diameter WKPS (mm) |
19.050 |
| Adapt/Shank/Bore Diameter WKPS F |
3/4 |
| Adapter/Shank/Bore Diameter (Inch) |
2.4803 |
| Adapter Style Machine Side |
KM |
| Body Diameter 1 Workpce Side (mm) |
44.450 |
| Adapter Size Workpiece Side |
0750 |
| System Size Machine Side |
KM63XMZ |
| Adapter Style Machine Side-EPP |
KMT-03 Auto Tool Chg w/3 Hole |
| Adapter/Shank/Bore Diameter (mm) |
63.000 |
