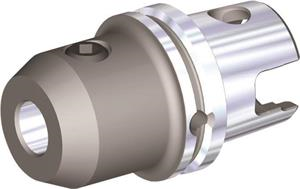

1 Inch Hole Diameter, 80mm Projection, KM63XMZ Modular Connection End Mill Holder
- Item Code: KM63XMZEM100315Y
- Brand: WIDIA-Erickson
- Unit Size: 1
| Flange Length (Metric) |
18.000 |
| Gage Length 1 (Inch) |
3.1500 |
| Gage Length 1 (Metric) |
80.000 |
| Overall Length (Inch) |
4.7224 |
| Overall Length (Metric) |
119.950 |
| Adapter/Shank/Bore Diameter (Fractional) |
2.4803 |
| Body Diameter 1 Workpce Side (mm) |
50.800 |
| Clamp Screw ID Drive Size |
3/8 |
| Shank Length (Metric) |
39.950 |
| Adapt/Shank/Bore Diameter WKPS F |
1 |
| Adapter Size Workpiece Side |
1000 |
| Adapter Style Machine Side |
KM |
| Adapter Style Machine Side-EPP |
KMT-03 Auto Tool Chg w/3 Hole |
| Adapt/Shank/Bore Diameter WKPS (mm) |
25.400 |
| Adapter Type Machine Side |
Taper Shank |
| Adapt/Shank/Bore Diameter WKPS (In) |
1.0000 |
| Shank Length (Inch) |
1.5728 |
| Adapter Type Machine Side-EPP |
KMT - KM Adapter |
| Adapter/Shank/Bore Diameter (Inch) |
2.4803 |
| Adapter/Shank/Bore Diameter (mm) |
63.000 |
| System Size Machine Side |
KM63XMZ |
| Adapter Size Machine Side-EPP |
0630 |
| Body Diameter 1 Workpce Side (In) |
2.0000 |
| Brand |
WIDIA-Erickson |
| Units of Tool (Extract) |
IN - Inch |
