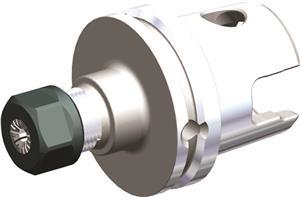

0.02 to 13/32 Inch Collet Capacity, KM63XMZ Modular Connection, Series ER16 Collet Chuck
- Item Code: KM63XMZER1660Y
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER16
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Adapter Size Workpiece Side | 0160 |
|---|---|
| Adjustment Range (Inch) | 0.3543 |
| Adjustment Range (mm) | 9.000 |
| Body Diameter 1 Workpce Side (In) | 1.1024 |
| Body Diameter 1 Workpce Side (mm) | 28.000 |
| Overall Length (Inch) | 3.9370 |
| Overall Length (Metric) | 100.000 |
| Stop Screw ID Drive Size | 4 mm & 5/32 |
| Usable Length (Inch) | 1.6535 |
| Usable Length (Metric) | 42.000 |
| Flange Length (Metric) | 18.000 |
| Gage Length 1 (Metric) | 60.000 |
| Adapter Size Machine Side-EPP | 0630 |
| Adapter/Shank/Bore Diameter (Inch) | 2.4803 |
| Adapter/Shank/Bore Diameter (Fractional) | 2.4803 |
| Brand | WIDIA-Erickson |
| Series | ER16 |
| Shank Length (Metric) | 39.950 |
| Shank Length (Inch) | 1.5728 |
| Units of Tool (Extract) | B - Both Metric & Inch |
| Adapter Type Machine Side-EPP | KMT - KM Adapter |
| Gage Length 1 (Inch) | 2.3622 |
| System Size Machine Side | KM63XMZ |
| Adapter Style Machine Side-EPP | KMT-03 Auto Tool Chg w/3 Hole |
| Adapter/Shank/Bore Diameter (mm) | 63.000 |
| Adapter Style Machine Side | KM |
| Adapter Type Machine Side | Taper Shank |
