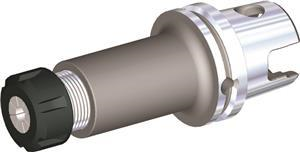

0.04 to 5/8 Inch Collet Capacity, KM63XMZ Modular Connection, Series ER25 Collet Chuck
- Item Code: KM63XMZER25120Y-WIDIA
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER25
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Adjustment Range | 1.5748 Inch |
|---|---|
| Body Diameter | 1.6535 Inch |
| Clamping Length | 1.5748 Inch |
| Nut Diameter | 1.6535 Inch |
| Hand of Tool | Neutral |
| Overall Length | 6.2992 Inch |
| Shank Style | Taper |
| Shank Length | 1.5728 Inch |
| Brand | WIDIA-Erickson |
| Gage Length | 4.7244 Inch |
| Usable Length | 3.7795 Inch |
| Product Name | Collet Chucks |
| Flange Length | 18.00 MM |
| Shank Diameter | 2.4803 Inch |
