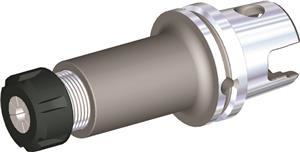

1.9685 Inch Body Dia. ER32 6.2970 OAL Taper Shank Collet Chuck
- Item Code: KM63XMZER32120Y
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER32
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Adjustment Range | 1.3386 Inch |
|---|---|
| Clamping Length | 1.8100 Inch |
| Flange Length | 18.00 MM |
| Nut Diameter | 1.9685 Inch |
| Overall Length | 6.2970 Inch |
| Usable Length | 3.7795 Inch |
| Hand of Tool | Neutral |
| Shank Length | 1.5728 Inch |
| Shank Style | Taper |
| Shank Diameter | 2.4803 Inch |
| Brand | WIDIA-Erickson |
| Gage Length | 4.7244 Inch |
| Product Name | Collet Chucks |
| Body Diameter | 1.9685 Inch |
