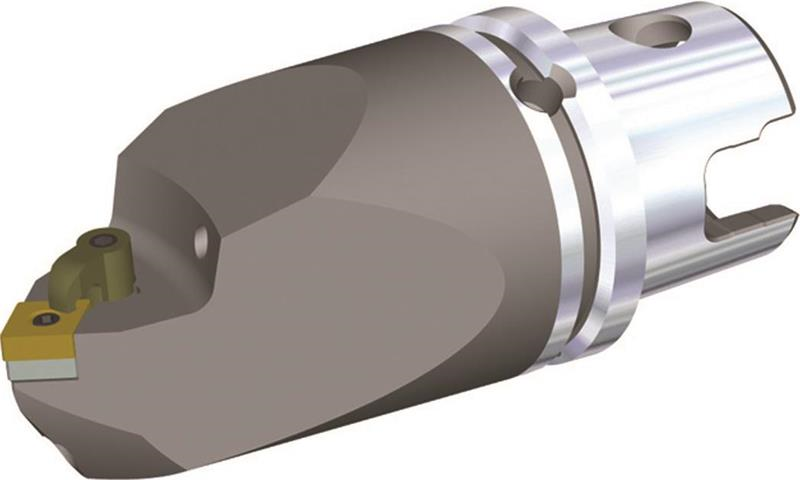

Centerline Tool KM63MZ
- Item Code: KM63XMZMCMNNF12115Y
- Brand: WIDIA-Erickson
- Unit Size: 1
| Adapter Style Machine Side-EPP |
KMT-06 UTAuto ToolChg w/4 Hole |
| Clamp Screw ID Drive Size |
3 mm |
| Clamping Type |
M - Top and Hole Clamping |
| Cutting Height (Metric) |
0.000 |
| Lead Angle ANSI |
40.217 |
| Lead Angle ISO |
49.783 |
| Lock Pin ID Drive Size |
2.5 mm |
| Tool Length (Inch) |
4.5276 |
| Tool Length (Metric) |
115.000 |
| Tool Overall Length (Inch) |
6.1004 |
| Tool Overall Length (mm) |
154.950 |
| Toolholder Shape |
S - Straight |
| Adapter Type Machine Side |
Taper Shank |
| Body Material Group |
S |
| Cutting Height (Inch) |
0.00000 |
| Shank Length (Inch) |
1.5728 |
| Shank Length (Metric) |
39.950 |
| Units of Tool (Extract) |
MM - Metric |
| Adapter/Shank/Bore Diameter (mm) |
63.000 |
| Adapter/Shank/Bore Diameter (Fractional) |
2.4803 |
| Brand |
WIDIA-Erickson |
| Cutting Edge Length (Inch) |
0.5077 |
| Cutting Edge Length (mm) |
12.896 |
| Adapter Size Machine Side-EPP |
0630 |
| Adapter Style Machine Side |
KM |
| Adapter/Shank/Bore Diameter (Inch) |
2.4803 |
| System Size Machine Side |
KM63XMZ |
| Adapter Type Machine Side-EPP |
KMT - KM Adapter |
