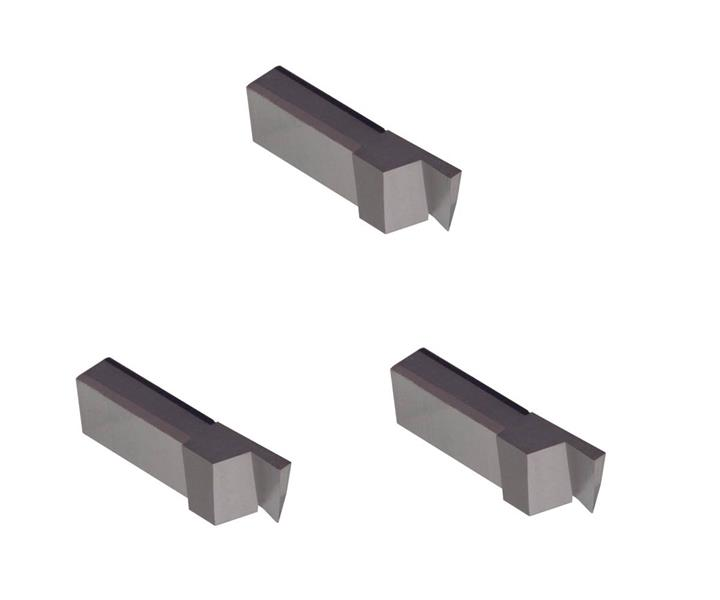

0.060 in. Width x 0.150 in. Depth Uncoated Carbide Full Radius Grooving Insert
- Item Code: LGT060D5LFR
- Brand: Groove'N Turn
- Unit Size: 1
Description
Cuts up to .150" deep. Can be used for parting stock up to .300". Cuts flush to collet face or shoulder of larger diameter. Designed for grooving and multi-directional turning. Use to generate grooves, arcs and angles. Uncoated DURA-MAX 5000 carbide grooving insert for non-ferrous alloys, aluminium and plastic without interrupted cuts. Use with Large series toolholders. Use LH straight or RH 90 degree.
Tech Specs
Back To Top| Depth | 0.150" |
|---|---|
| Width | 0.060" |
| Product Type | Grooving |
| Coating/Finish | None |
| Material | Solid Carbide |
| Brand | Groove'N Turn |
