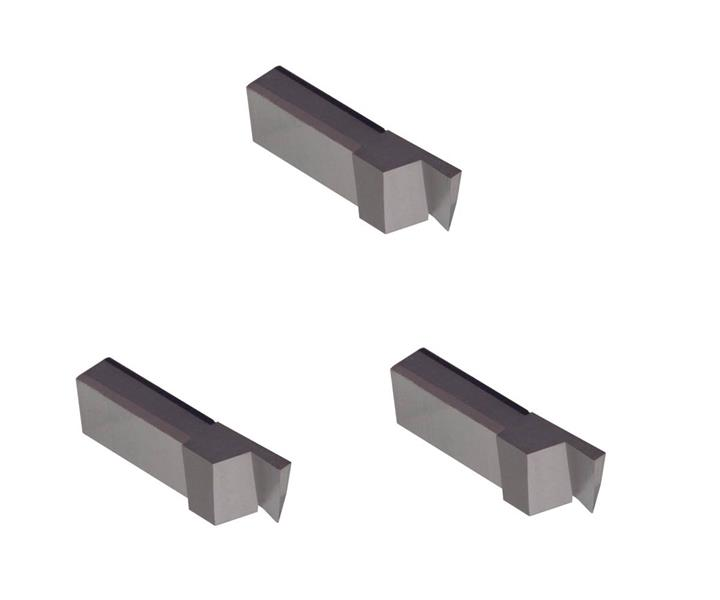

0.090 in. Width x 0.225 in. Depth Uncoated Carbide Sharp Corner Grooving Insert
- Item Code: LGT090D5R
- Brand: Groove'N Turn
- Unit Size: 1
Description
Cuts up to .225" deep. Can be used for parting stock up to .450". Cuts flush to collet face or shoulder of larger diameter. Designed for grooving and multi-directional turning. Use to generate grooves, arcs and angles. Uncoated DURA-MAX 5000 carbide grooving insert for non-ferrous alloys, aluminium and plastic without interrupted cuts. Use with Large series toolholders. Use RH straight or LH 90 degree.
Tech Specs
Back To Top| Cut Type | Sharp Corner, 0 Radius |
|---|---|
| Cutting D | Either M03 or M04 |
| End Cut Type | 0.225" Depth of Cut |
| Brand | Groove'N Turn |
| Product Type | Grooving |
| Coating/Finish | Bright |
| Cutting Angle Degrees | 0 |
| Material | Solid Carbide |
