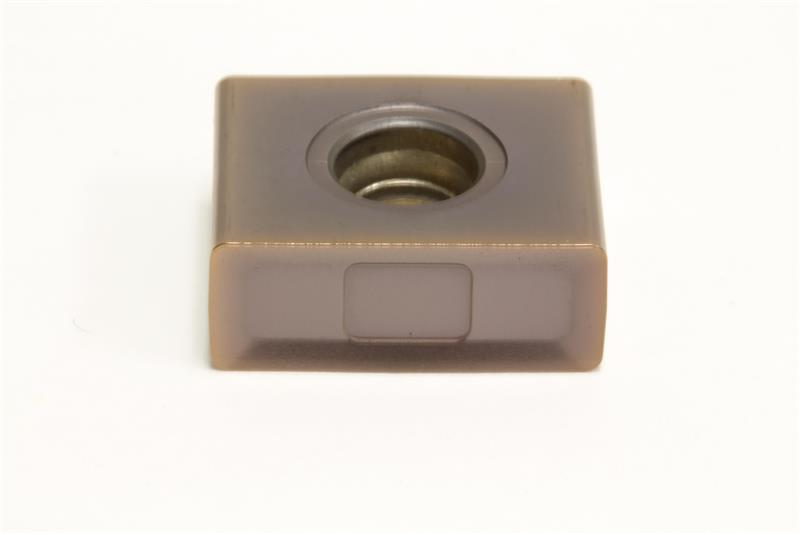

LNMX160608 G ACK300 Grade, Carbide, TiAIN/AICrN Coated, Milling Insert

  • Item Code: LNMX160608PNSN-G ACK300
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type PNSN-G
Corner Radius 0.0320 Inch
Cutting Width 0.4760 Inch
Face Width 0.2180 Inch
Included Angle 184
Length 0.6340 Inch
Brand Sumitomo
Thickness 0.2500 Inch
Grade ACK300
Insert Series PWC
Material Solid Carbide
Number of Edges 4
Product Name Milling Insert
Coating/Finish TiAIN/AICrN
Insert Style LNMX
Insert Size 160608
