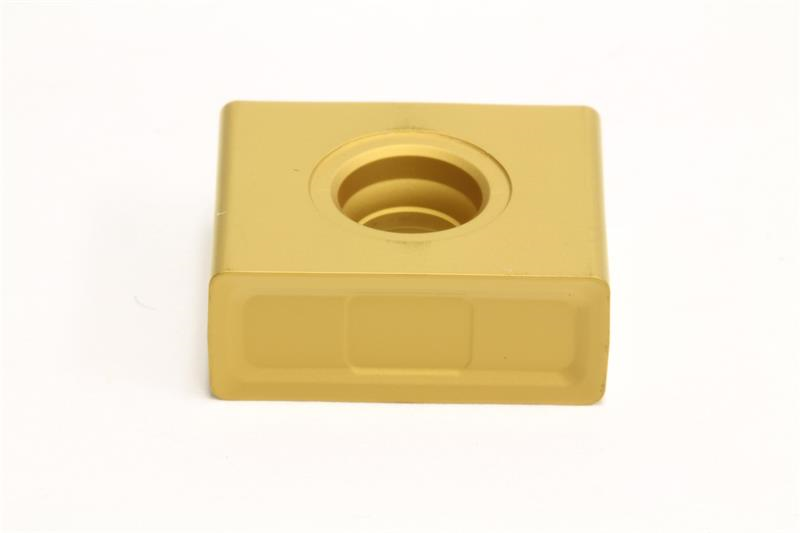

LNMX160608 H ACK200 Grade, Carbide, AI2O3 Coated, Milling Insert

  • Item Code: LNMX160608PNSN-H ACK200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Series PWC
Insert Style LNMX
Grade ACK200
Length 0.6340 Inch
Corner Radius 0.0320 Inch
Number of Edges 4
Thickness 0.2500 Inch
Chipbreaker Type PNSN-H
Included Angle 184
Brand Sumitomo
Coating/Finish Al2O3
Face Width 0.2180 Inch
Product Name Milling Insert
Cutting Width 0.4760 Inch
Insert Size 160608
Material Solid Carbide
