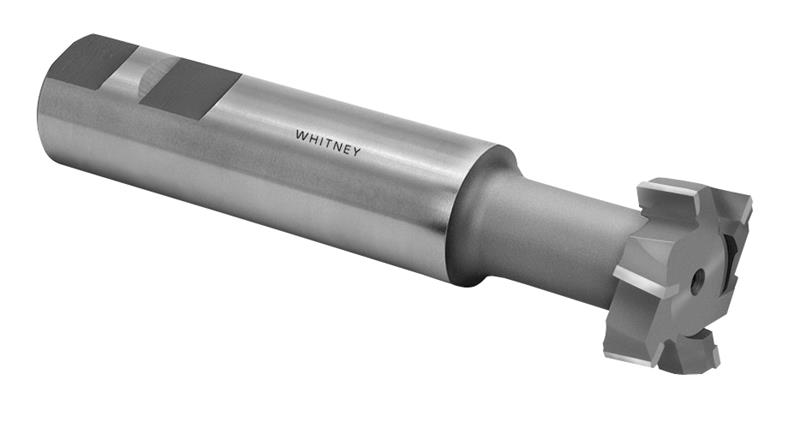

1 in. x 3/8 in. M2 HSS Long Shank T-Slot Milling Cutter - TiN Coated/Staggered Tooth

  • Item Code: LTS3224T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Long Shank T-Slot Milling Cutters - High Speed Steel

M2 Material Grade

Staggered Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672152988
Overall Length (Inch) 4-15/16"
Width Tolerance +0.004", -0"
Coating/Finish TiN
Material High Speed Steel
Number of Teeth 6
Shank Type Weldon
Brand Whitney Tool
Shank Diameter 5/8"
Style Long Shank
Tooth Configuration Alt. 10 deg. Helix
Fractional Diameter 1"
Cut Width 3/8"
OD Tolerance -0.002", -0.007"
Neck Length 1"
Metric Diameter 25.40 mm
Neck Diameter 0.437
Shank Diameter Tolerance +0", -0.0005"
