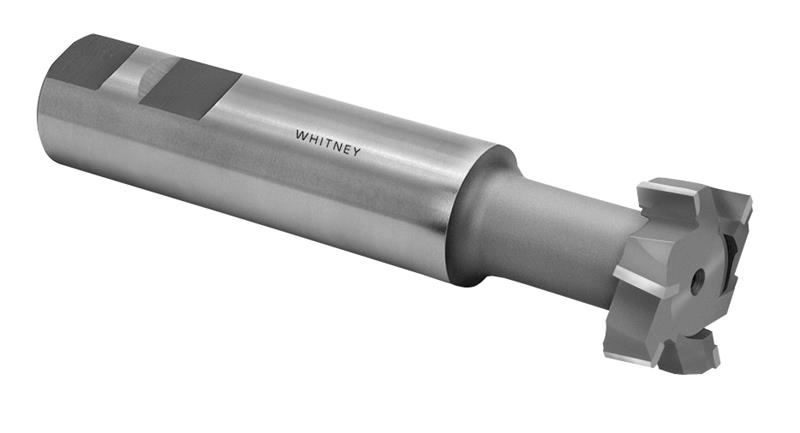

1-1/4 in. x 1/8 in. M42 Cobalt Long Shank T-Slot Milling Cutter - TiN Coated/Staggered Tooth

  • Item Code: LTS4008M42T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Long Shank T-Slot Milling Cutters - M42 Cobalt

Staggered Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672253012
Brand Whitney Tool
Overall Length (Inch) 5-1/8"
Style Long Shank
Tooth Configuration Alt. 10 deg. Helix
Number of Teeth 6
OD Tolerance -0.003", -0.007"
Shank Diameter 3/4"
Coating/Finish TiN
Neck Length 1-1/8"
Fractional Diameter 1-1/4"
Metric Diameter 31.75 mm
Width Tolerance +0.004", -0"
Neck Diameter 0.593
Cut Width 1/8"
Shank Diameter Tolerance +0", -0.0005"
Shank Type Weldon
Material Cobalt
