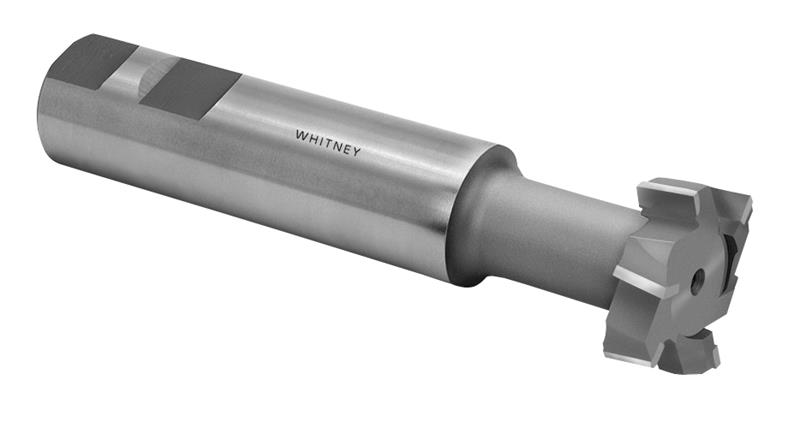

1-1/4 in. x 5/16 in. M42 Cobalt Long Shank T-Slot Milling Cutter - TiN Coated/Staggered Tooth

  • Item Code: LTS4020M42T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Long Shank T-Slot Milling Cutters - M42 Cobalt

Staggered Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672253043
Style Long Shank
Tooth Configuration Alt. 10 deg. Helix
Width Tolerance +0.004", -0"
Brand Whitney Tool
Fractional Diameter 1-1/4"
Neck Diameter 0.593
Number of Teeth 6
Shank Type Weldon
Shank Diameter Tolerance +0", -0.0005"
Material Cobalt
Metric Diameter 31.75 mm
OD Tolerance -0.003", -0.007"
Shank Diameter 3/4"
Overall Length (Inch) 5-1/8"
Coating/Finish TiN
Cut Width 5/16"
Neck Length 1-1/8"
