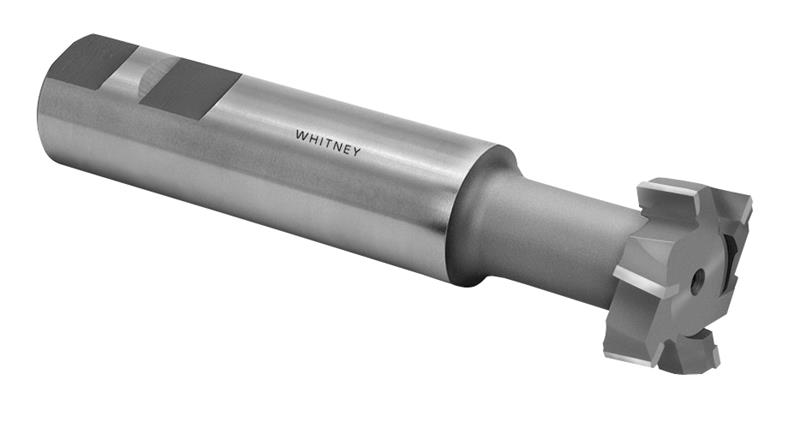

1-1/2 in. x 3/16 in. M42 Cobalt Long Shank T-Slot Milling Cutter - Uncoated/Staggered Tooth

  • Item Code: LTS4812M42
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Long Shank T-Slot Milling Cutters - M42 Cobalt

Staggered Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672203093
Brand Whitney Tool
Tooth Configuration Alt. 10 deg. Helix
Style Long Shank
OD Tolerance -0.003", -0.009"
Neck Diameter 0.718
Width Tolerance +0.004", -0"
Coating/Finish None
Fractional Diameter 1-1/2"
Metric Diameter 38.10 mm
Neck Length 1-11/32"
Overall Length (Inch) 5-5/16"
Material Cobalt
Shank Diameter Tolerance +0", -0.0005"
Cut Width 3/16"
Number of Teeth 6
Shank Diameter 1"
Shank Type Weldon
