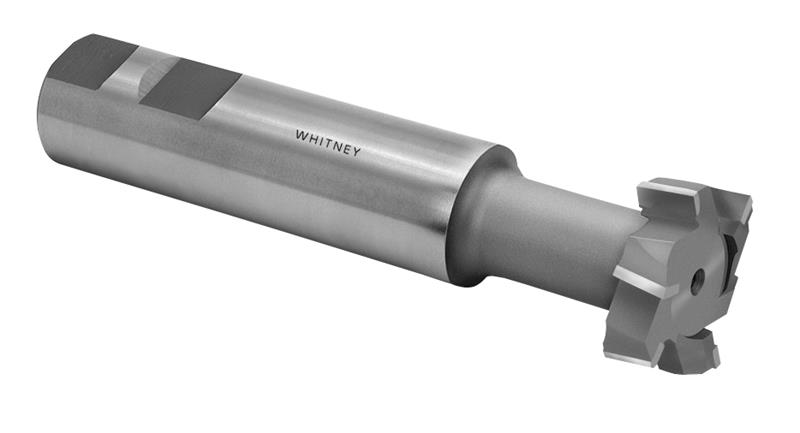

1-1/2 in. x 3/16 in. M2 HSS Long Shank T-Slot Milling Cutter - TiN Coated/Staggered Tooth

  • Item Code: LTS4812T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Long Shank T-Slot Milling Cutters - High Speed Steel

M2 Material Grade

Staggered Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672153091
Neck Diameter 0.718
Width Tolerance +0.004", -0"
Fractional Diameter 1-1/2"
Metric Diameter 38.10 mm
Shank Diameter Tolerance +0", -0.0005"
Overall Length (Inch) 5-5/16"
Tooth Configuration Alt. 10 deg. Helix
Material High Speed Steel
OD Tolerance -0.003", -0.009"
Cut Width 3/16"
Number of Teeth 6
Shank Diameter 1"
Shank Type Weldon
Brand Whitney Tool
Coating/Finish TiN
Style Long Shank
Neck Length 1-11/32"
