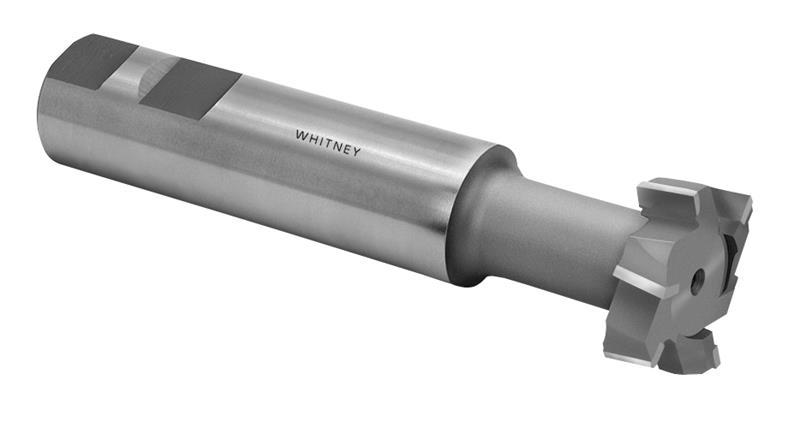

1-1/2 in. x 1/4 in. M2 HSS Long Shank T-Slot Milling Cutter - Uncoated/Staggered Tooth

  • Item Code: LTS4816
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Long Shank T-Slot Milling Cutters - High Speed Steel

M2 Material Grade

Staggered Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672103102
Neck Diameter 0.718
Width Tolerance +0.004", -0"
Material High Speed Steel
Style Long Shank
Brand Whitney Tool
Cut Width 1/4"
OD Tolerance -0.003", -0.009"
Tooth Configuration Alt. 10 deg. Helix
Metric Diameter 38.10 mm
Overall Length (Inch) 5-5/16"
Shank Diameter Tolerance +0", -0.0005"
Neck Length 1-11/32"
Coating/Finish None
Fractional Diameter 1-1/2"
Number of Teeth 6
Shank Diameter 1"
Shank Type Weldon
