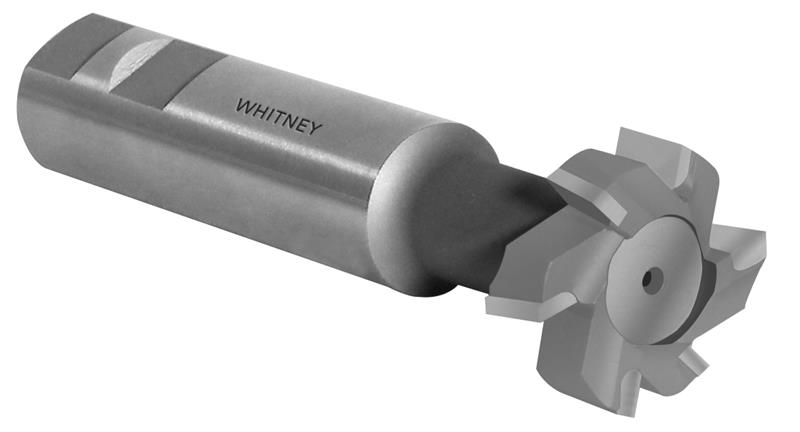

1-1/2 in. x 1/2 in. Carbide Tipped Long Shank T-Slot Milling Cutter - Uncoated/Staggered Tooth

  • Item Code: LTS4832C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Long Shank T-Slot Milling Cutters - Carbide Tipped

Staggered Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
OD Tolerance -0.003", -0.009"
Overall Length (Inch) 5-5/16"
UPC 648672305193
Metric Diameter 38.10 mm
Shank Diameter Tolerance +0", -0.0005"
Number of Teeth 6
Shank Diameter 1"
Shank Type Weldon
Neck Diameter 0.718
Width Tolerance +0.004", -0"
Coating/Finish None
Material Carbide Tipped
Style Long Shank
Cut Width 1/2"
Neck Length 1-11/32"
Tooth Configuration Alt. 10 deg. Helix
Brand Whitney Tool
Fractional Diameter 1-1/2"
