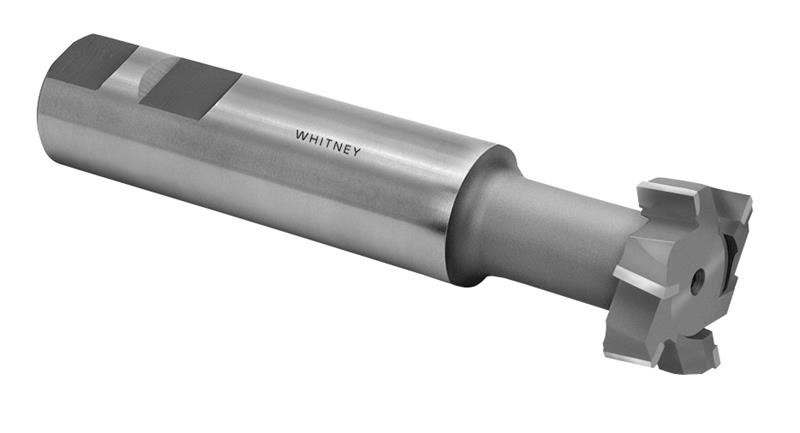

2 in. x 1/4 in. M42 Cobalt Long Shank T-Slot Milling Cutter - TiN Coated/Staggered Tooth

  • Item Code: LTS6416M42T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Long Shank T-Slot Milling Cutters - M42 Cobalt

Staggered Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672253166
Metric Diameter 50.80 mm
Shank Diameter 1"
Shank Type Weldon
Cut Width 1/4"
Neck Length 1-9/16"
Style Long Shank
Brand Whitney Tool
Coating/Finish TiN
Neck Diameter 0.796
Fractional Diameter 2"
Overall Length (Inch) 5-11/16"
Number of Teeth 10
OD Tolerance -0.004", -0.010"
Tooth Configuration Alt. 10 deg. Helix
Width Tolerance +0.004", -0"
Material Cobalt
Shank Diameter Tolerance +0", -0.0005"
