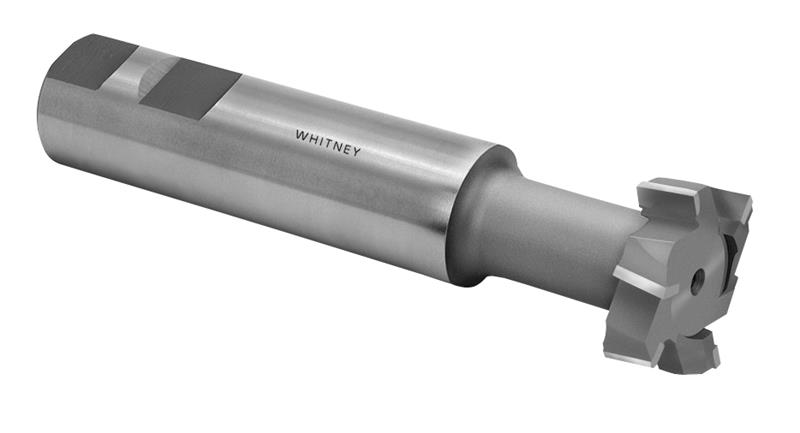

2 in. x 5/16 in. M2 HSS Long Shank T-Slot Milling Cutter - TiN Coated/Staggered Tooth

  • Item Code: LTS6420T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Long Shank T-Slot Milling Cutters - High Speed Steel

M2 Material Grade

Staggered Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672153176
Fractional Diameter 2"
Neck Diameter 0.796
Overall Length (Inch) 5-11/16"
Shank Diameter 1"
Shank Diameter Tolerance +0", -0.0005"
Shank Type Weldon
Brand Whitney Tool
Style Long Shank
Tooth Configuration Alt. 10 deg. Helix
Coating/Finish TiN
Cut Width 5/16"
Material High Speed Steel
Width Tolerance +0.004", -0"
Metric Diameter 50.80 mm
Neck Length 1-9/16"
Number of Teeth 10
OD Tolerance -0.004", -0.010"
