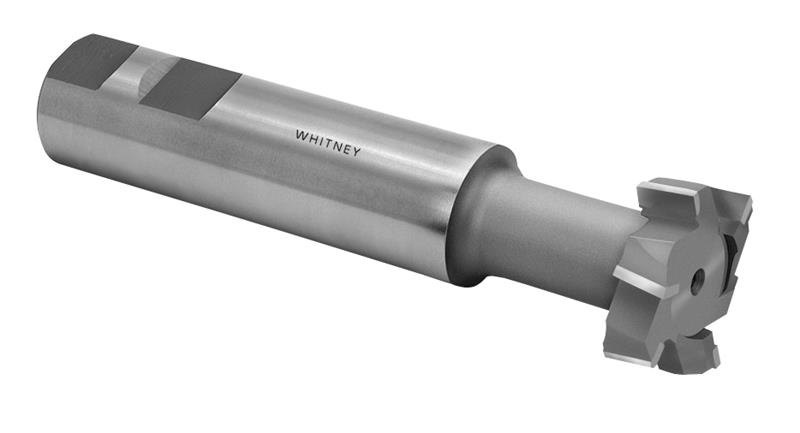

2 in. x 3/8 in. M2 HSS Long Shank T-Slot Milling Cutter - TiN Coated/Staggered Tooth

  • Item Code: LTS6424T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Long Shank T-Slot Milling Cutters - High Speed Steel

M2 Material Grade

Staggered Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672153183
Brand Whitney Tool
Fractional Diameter 2"
Style Long Shank
Material High Speed Steel
Metric Diameter 50.80 mm
Neck Diameter 0.796
Shank Diameter 1"
Shank Type Weldon
OD Tolerance -0.004", -0.010"
Tooth Configuration Alt. 10 deg. Helix
Coating/Finish TiN
Cut Width 3/8"
Number of Teeth 10
Width Tolerance +0.004", -0"
Neck Length 1-9/16"
Overall Length (Inch) 5-11/16"
Shank Diameter Tolerance +0", -0.0005"
