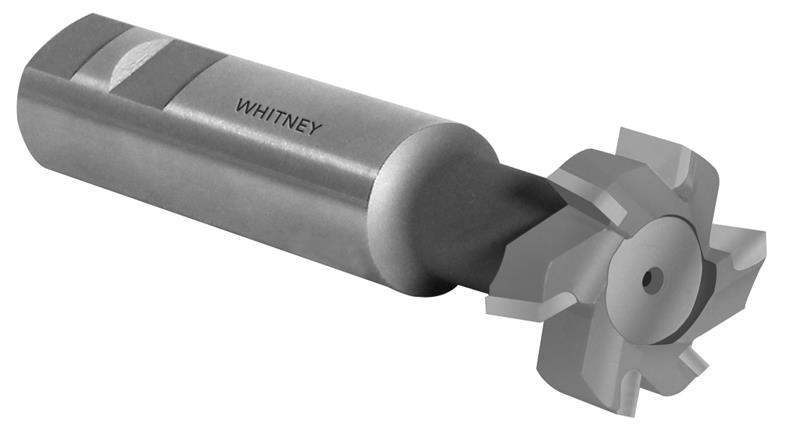

2 in. x 1/2 in. Carbide Tipped Long Shank T-Slot Milling Cutter - TiN Coated/Staggered Tooth
- Item Code: LTS6432CT
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Long Shank T-Slot Milling Cutters - Carbide Tipped
Staggered Tooth Configuration
Made in USA
Features
Back To Top- Right Hand Cut
- Weldon Shank
Tech Specs
Back To Top| UPC | 648672355259 |
|---|---|
| Number of Teeth | 10 |
| Width Tolerance | +0.004", -0" |
| Neck Length | 1-9/16" |
| Shank Type | Weldon |
| Coating/Finish | TiN |
| Brand | Whitney Tool |
| Fractional Diameter | 2" |
| Material | Carbide Tipped |
| OD Tolerance | -0.004", -0.010" |
| Style | Long Shank |
| Tooth Configuration | Alt. 10 deg. Helix |
| Neck Diameter | 0.796 |
| Overall Length (Inch) | 5-11/16" |
| Shank Diameter | 1" |
| Shank Diameter Tolerance | +0", -0.0005" |
| Cut Width | 1/2" |
| Metric Diameter | 50.80 mm |
