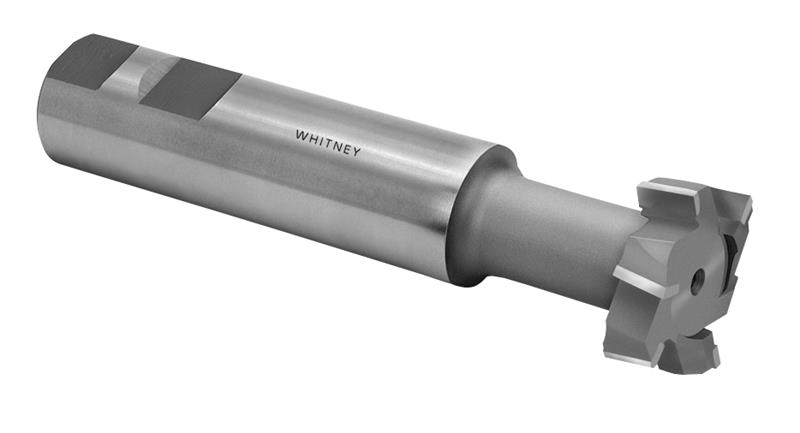

2 in. x 5/8 in. M2 HSS Long Shank T-Slot Milling Cutter - Uncoated/Staggered Tooth

  • Item Code: LTS6440
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Long Shank T-Slot Milling Cutters - High Speed Steel

M2 Material Grade

Staggered Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672103201
Metric Diameter 50.80 mm
Neck Diameter 0.796
Shank Diameter Tolerance +0", -0.0005"
Coating/Finish None
Overall Length (Inch) 5-11/16"
Shank Diameter 1"
Neck Length 1-9/16"
Brand Whitney Tool
Cut Width 5/8"
Material High Speed Steel
Shank Type Weldon
Fractional Diameter 2"
Number of Teeth 10
OD Tolerance -0.004", -0.010"
Style Long Shank
Tooth Configuration Alt. 10 deg. Helix
Width Tolerance +0.004", -0"
