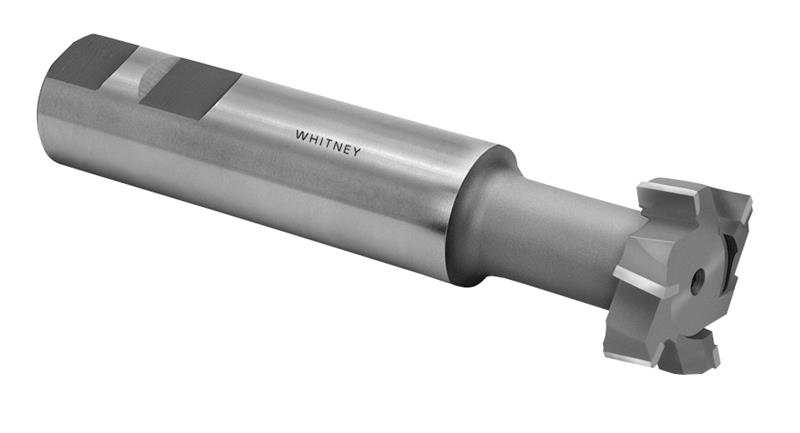

2 in. x 5/8 in. M42 Cobalt Long Shank T-Slot Milling Cutter - Uncoated/Staggered Tooth

  • Item Code: LTS6440M42
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Long Shank T-Slot Milling Cutters - M42 Cobalt

Staggered Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672203208
OD Tolerance -0.004", -0.010"
Tooth Configuration Alt. 10 deg. Helix
Cut Width 5/8"
Material Cobalt
Overall Length (Inch) 5-11/16"
Shank Diameter Tolerance +0", -0.0005"
Coating/Finish None
Fractional Diameter 2"
Number of Teeth 10
Width Tolerance +0.004", -0"
Brand Whitney Tool
Neck Length 1-9/16"
Style Long Shank
Neck Diameter 0.796
Shank Diameter 1"
Shank Type Weldon
Metric Diameter 50.80 mm
