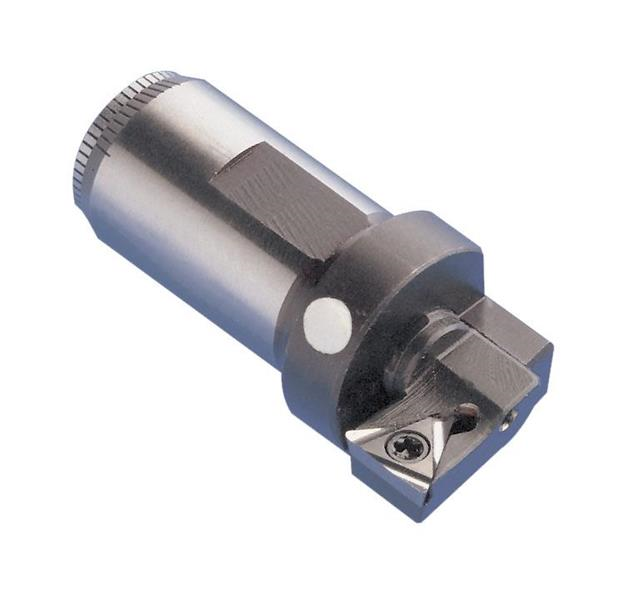

3.937 Inch Min Bore Diameter, TOGX 090204.. Boring Cartridge
- Item Code: M30 20061
- Brand: Komet
- Unit Size: 1
Description
B30 16010, B30 16020 Compatible
Tech Specs
Back To Top| Boring Head Compatibility | B30 16010; B30 16020 |
|---|---|
| Center Offset | 0.7480 Inch |
| Overall Length | 97mm |
| Complete Insert Compatibility | TOGX090204EN-14; TOGX090204FN-12; TOGX090204TN; TOHX090204EL-G06 |
| Insert Style | TOGX 090204.. |
| Mount Bars | Straight |
| Projection | 1.4370 Inch |
| Cartridge Size | 32 |
| Series | Kometric |
| Type | Boring Cartridge |
| Brand | Komet |
| Minimum Bore Diameter | 100mm |
